史上最全船舶演习记录规范

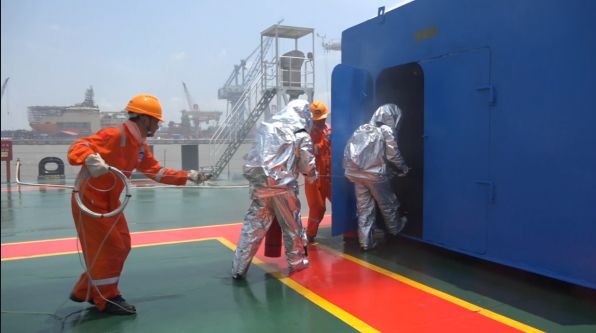

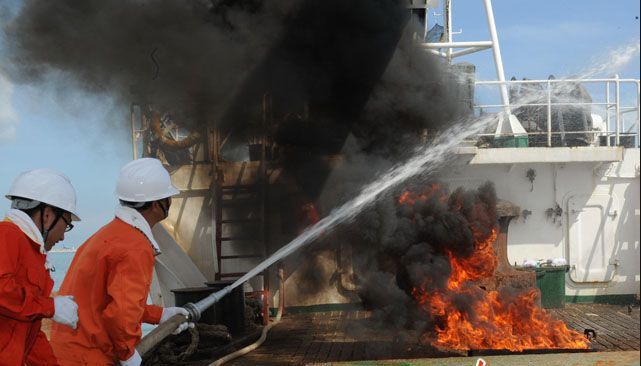

机舱失火消防演习(参阅SOLAS245)

Fire-fighting Drill(engine room)


1430  释放机舱失火警报,并全船广播机舱失火,启动消防泵,准备好大型CO2的释放,悬挂CB6旗。

1432 全体人员携带相关设备集合于船尾甲板,检查通讯设备正常,探火员着装,皮龙接妥并出水,检查着装,点名正常。

1434 切断通风,关闭机舱所有通风道门、天窗、防火门,探火员着装完毕,进行探火,皮龙掩护。

1438 探火员报告锅炉附近油管破裂起火,火势太大,手提灭火器无法扑灭。通知机舱人员撤离,切断油路电路。

1441 所有人员到齐,释放大型CO2,做好放艇准备工作,应急发电机及应急消防泵启动。

1450 机舱壁温度明显下降,探火员二次探火。

1454 探火员报火已扑灭,无复燃可能,打开机舱自然通风,固定救生艇。

1500 测氧氧气含量21% ,恢复油电路及机械通风,清理火场。1506 现场讲评。

1510 解除警报,演习结束。


1430 Sounded the alarm of firefighting and broadcasted, captain on bridge, hoisted the flag CB6,started the fire pump.

1432 All crew mustered on A-deck with toolsand portable extinguishers. Two hose spurted out water to cool around, removedthe flammability and closed doors and ventilations .tested the communicationsystem normal. Two firemen started to put on outfits.

1434 Firemen detected the fire with portableextinguisher, the hose cover.

1438 Firemen reported the pipe of the boilerwas on fire, it could not be off by the portable extinguisher. Noticed the dutyin the E/R to retreat, shut down power & oil supply, prepared the CO2system.

1441 The duty in the E/R arrived with EEBD, callingnormal, released the CO2 to the E/R. prepared the lifeboat .started the emergencygenerator and fire pump normal.

1450 The temperature of the outerwall on the E/R obvious lowered, the firemen detected again.

1454 Firemen reported the fire was off and impossibleburned again, opened the doors and vents,fastened the lifeboat.

1500 Firemen measured out the O2about 20.8%, resumed power & oil supply, cleaned up the spot.

1506 Reviewed.

1510 Dismissed the alarm, finishthe drill.



厨房失火消防演习

Fire-fighting Drill (Galley)


1500 释放生活区失火警报,同时全船广播厨房失火,启动消防泵,升CB6旗。


1502 全体人员携带消防器材集合于左救生甲板,检查通讯设备正常,探火员着装,皮龙接妥并出水,检查着装,点名正常,切断厨房所有通风、电源,关闭门窗。


1504 探火员着装完毕,厨房烟雾太大无法进入,带手提灭火器进行探火,皮龙掩护。发现大厨受伤被困,救出,救助队救助。


1507  探火员再次探火,准备救生艇。


1510  厨房电路板起火,火势不大,用手提灭火器扑灭,无复燃可能。


1515  打开门窗进行自然通风,固定救生艇。


1520  墙壁温度明显下降,探火员测氧气含量20.8% ,恢复机械通风,清理火场。

1525 现场讲评


1528 解除警报,演习结束。


1500 Sounded thealarm of fire-fighting and broadcast. Captain on bridge, hoisted the flag CB6, startedthe fire pump.

1502 Crew mustered on A-deck with tools andportable extinguishers, Two firemen started to put on outfits, water dischargedto cool around, removed the flammability and closed fire proof  doors and ventilations, Shut off power supply,tested the communication system normal.

1504 Fireman detectedthe fire with portable extinguisher, the hose cover, found the cooker injuredand took him off. First-aid team saved.

1507 Firemandetected again, prepared the lifeboat.

1510 Firemen reportedthe stove was on fire, the fire was off by the portable extinguisher andimpossible burned again.

1515Resumedpower supply, opened doors and ventilations, fastened the lifeboat.

1520 Firemenmeasured out the O2 about 20.8%, resumed power supply, cleaned up the spot.

1525Reviewed.

1528Dismissed the alarm, finish the drill.



油漆间消防演习

Fire-fighting Drill(PAINT ROOM)


1400 释放船首失火警报,同时全船广播厨房失火,启动消防泵,升CB6旗。


1402 全体人员携带消防器材集合于右主甲板,检查通讯设备正常,探火员着装,皮龙接妥并出水,检查着装,点名正常,切断油漆间所有通风、电源,关闭门窗。


1404 探火员着装完毕,油漆间烟雾太大无法进入,进行探火,皮龙掩护。


1408  油漆间油漆起火,火势太大,用手提灭火器无法扑灭,准备好大型CO2灭火。


1410  释放大型CO2,准备救生艇。


1415  厨房墙壁温度明显下降,探火员再次探火。


1418  探火员报火已扑灭,无复燃可能,打开机舱自然通风,固定救生艇。


1423 测氧氧气含量20.5% ,清理火场。



1425 现场讲评


1427 解除警报,演习结束。


1400 Sounded thealarm of fire-fighting and broadcasted. Captain on bridge, started the firepump, hoisted the flag CB6.

1402 Crew mustered onstarboard deck of NO.1 hold with tools and portable extinguishers, Two firemen startedto put on outfits, water discharged to cool around, removed the flammabilityand closed fire proof doors and ventilations, Shut off power supply, tested thecommunication system normal.

1404 Fireman detectedthe fire with portable extinguisher, the hose cover.

1408 Fireman reported that the paint was onfair, it was out of control, prepared the CO2system.

1410 Releasedthe CO2 to the paint room, prepared the lifeboat.

1415 Thetemperature of outer wall obvious lowered, firemen detected again.

1418 Fireman reported that the fire has beenoff and impossible burned again, opened the doors and vents,fastened the lifeboat.

1423 Firemenmeasured out the O2 about 20.5%, resumed power supply, cleaned up the spot.

1425 Reviewed

1427Dismissed the alarm, finish the drill.



 洗衣间失火消防演习

Fire-fighting Drill (laundry room)


1500 释放生活区失火警报,同时全船广播B甲板洗衣间失火,启动消防泵,升CB6旗。


1502 全体人员携带消防器材集合于左救生甲板,检查通讯设备正常,探火员着装,皮龙接妥并出水,检查着装,点名正常,切断洗衣间所有通风、电源,关闭门窗。

1504 探火员着装完毕,洗衣间烟雾太大无法进入,带手皮龙进行探火,另一皮龙掩护,准备救生艇。


1507  洗衣间衣服起火,已用皮龙扑灭,无复燃可能。


1512  打开门窗进行自然通风,固定救生艇。


1516  墙壁温度明显下降,探火员测氧气含量20.8% ,恢复机械通风,清理火场。

1518 现场讲评


1520 解除警报,演习结束。


1500 Sounded thealarm of fire-fighting and broadcasted that the laundry was on fire on B-deck. Captainon bridge, hoisted the flag CB6, started the fire pump.

1502 Crew mustered on A-deck with tools andportable extinguishers, Two firemen started to put on outfits, water dischargedto cool around, removed the flammability and closed fire proof  doors and ventilations, Shut off power supply,tested the communication system normal.

1504 Fireman detectedand put out the fire with water, prepared the lifeboat.

1507 Thecloth was on fire, the fire was off by water and impossible burned again.

1512 Opened doors andventilations, fastened the lifeboat.

1516 The temperatureof the outer wall obvious lowered, firemen measured out the O2 about 20.5%,resumed power supply, cleaned up the spot.

1518 Reviewed.

1520 Dismissedthe alarm, finish the drill.



 溢油演习

OIL SPILLAGE DRILL


1520 值班人员发现应急消防泵间漏油,关掉相关的油阀和泵,并立即报告。


1522 释放溢油警报,并全船广播,船长上驾驶台。


1524 全体人员携清油器材集合于NO5舱左甲板,随艇下人员集合于NO1救生艇,并做好放艇准备工作。堵塞甲板泄水孔。


1526 经查发现应急消防泵间一个油桶破裂漏油,油量不多,未流入海,立即回收溢油,更换破损的油桶,固定救生艇。


1532 溢油回收完毕,用洗衣粉清洁甲板及泵间。


1537 现场讲评,恢复正常航行。


1540解除警报,演习结束。


1520 Duty person found the pipe after NO.3hold was leaking, shut off relevant valves and the pump on main deck, reported.(the pump room for the hatch cover on main deck;found NO.3 tank overflowed during bunkering to portside, stopped thebunkering operation. )

1522 Sounded the alarm of oil spillage andbroadcasted, Captain on bridge.

1524 Crew mustered on main deck with tools, walledup the discharge hole on main deck, prepared the lifeboat.

1526 The pipe was broken, repaired. No oilout the shipboard, cleaned up and removed leakage oil on main deck, fastenedthe lifeboat.

1532 The pipe had been repaired, (resumed bunkering).Reviewed

1535 Dismissedthe alarm, finished the drill.

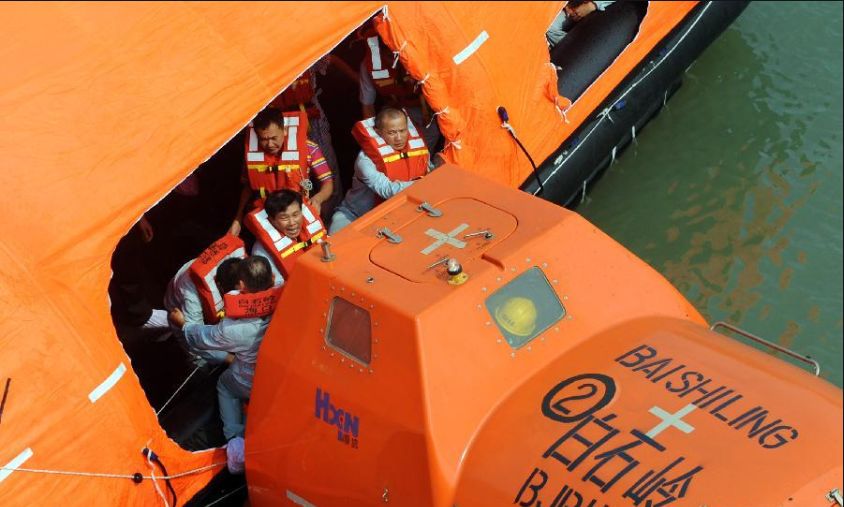

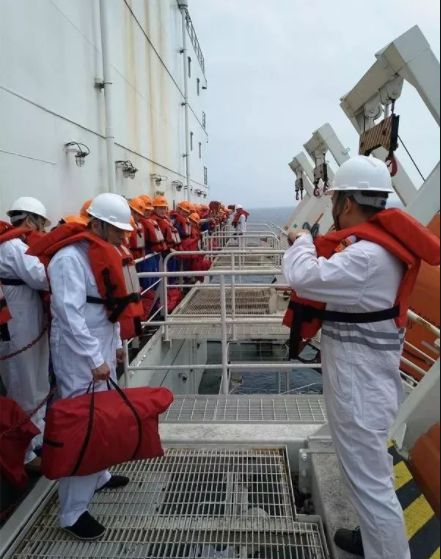

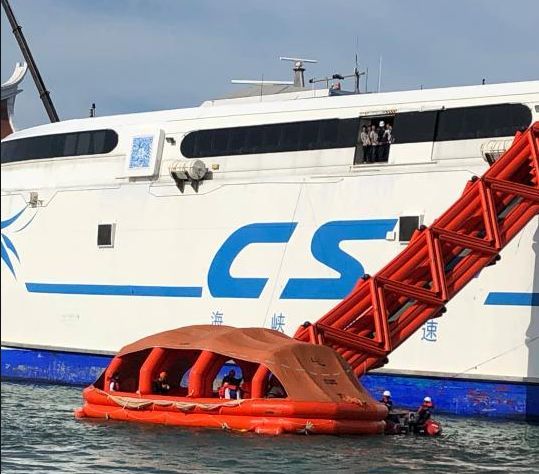

弃船演习(参阅SOLAS244)

ABANDON SHIP DRILL (BOAT DECK)


1500 释放弃船演习警报,并全船广播,挂AC旗。


1502 全体人员携相关物品集合于左右艇甲板,检查通讯设备正常,开启应急照明正常,各自按职行动。


1504 做好放艇准备工作,启动艇机正倒车正常。


1506 人员到齐,点名查职,检查着装正常,各项弃船工作准备就绪,放艇。


1508 两艇放至艇甲板停,试验刹车正常。


1510 两艇绞起,固定。


1515左艇固定妥,属具归位。


1516 右艇固定妥,属具归位。现场讲评。


1518解除警报,演习结束。


                              (自由降落式救生艇)

1430 Sounded thealarm of abandon ship and broadcasted, Captain on bridge.

1432 All crewmustered on the boat-deck in lifejackets with tools, got ready the lifeboat, Testedemergency lights and communication system normal.

1434 Callingnormal, Crew commenced to get into the lifeboat.

1436 All crew gotinto the lifeboat, tested boat engine 、rudder and SART normal, launched the boat on water and manoeuvred it.( Simulated to launch the lifeboat.)

1449 Raised the boatand fastened it, crew left the lifeboat.

1452 Checked thelifeboat normal, reviewed.

1454 Dismissedthe alarm, finished the drill.




双艇弃船演习

1605.Sunded thealarm and broadcasted.Capt on the bridge.

1607.All crewmembers mustered at boat deck with life jackets and immersion suits.checkedcommunication equipments normal.switched on emergence lights.got ready bothboats.

1608.Both boatswere ready for launch.calling and checked life jackets normal.

1610.Abandon shipready completed.make ready for abandon ship.launched No.1 boat.

1611.Launched No.2boat.No.1 boat lanched to boat deck.

1612.No.2 boatlaunch to boat deck.

1614.No.1&No.2boat recovered.

1618.No.1 lifeboatfasted.

1619.No.2 lifeboatfasted reviewed.

1621.Dismissed thealarm.finish the drill.

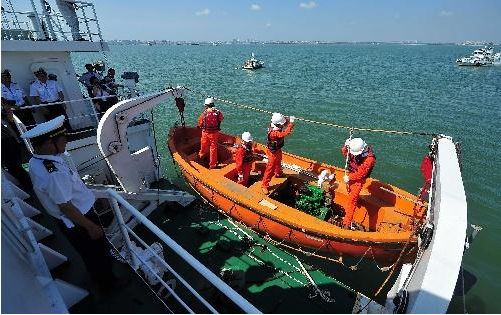

双艇脱钩演练

Lifeboat launched out water operationtraining &hooks off


0830 释放弃船演习警报,并全船广播。

0832 全体人员携相关物品集合于左右艇甲板,检查通讯设备正常,开启应急照明正常,各自按职行动。

0834 做好放艇准备工作,启动艇机正倒车正常。

0836 人员到齐,点名查职,检查着装正常,各项弃船工作准备就绪,登艇人员登艇,放艇。

0838 双艇放至水面,脱钩正常,进行水面操纵。

0850 左艇驶回大船,挂钩正常,绞起。

0853 右艇驶回大船,挂钩正常,绞起。

0856 左艇收到位,固定妥,属具归位。

0858右艇收到位,固定妥,属具归位。讲评。

0900解除警报,演习结束。

1230 life boat drill alarmed.

1232 All crew mustered on both side lifeboat deck. NO.1&2 boats ready to launch.

1235 NO.1&2 boat on water. Hooks offand let go painter, sailing away.

1310 checked both side rescue ladder andemergency lights found ok .

1320 NO.1&2 boat refitted and lashing. Checked andtested emergency apparatus found ok.

1330 Dismissed thealarm, Finish the drill.

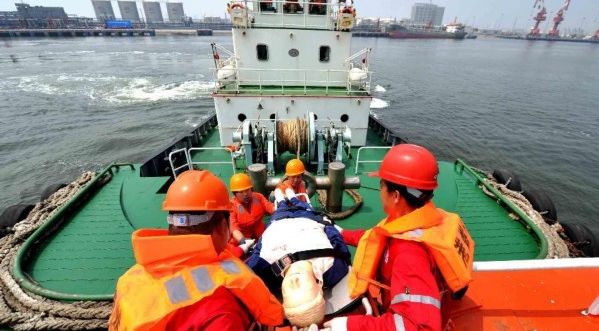

营救落水人员

Recovery of persons from thewater


1435 释放营救落水人员警报,并全船广播左舷有人落水,抛救生圈,向左满舵,船长上驾驶台。

1437 全体人员携相关物品集合于右救生甲板,做好救生艇的释放准备工作,备车航行,使用威廉逊旋回法驶往人员落水地点。保持通信畅通,检查营救设备和个人保护装备。开启应急照明正常。

1439 救生艇放艇工作准备完毕,启动救生艇正倒车正常,试验刹车正常,人员登艇。

1445 驶回落水地点,发现落水人员,自上风侧接近,放艇。

1450 救回落水人员。

1453收艇,抢救落水人员,向公司及相关单位汇报。

1456 艇收妥,属具归位,现场讲评。

1500解除警报,演习结束。

1435 Sounded thealarm of man overboard and broadcast that there was somebody overboard onstarboard, let go a lifebuoy, hard port,Captain on bridge, Inform E/R to standby engine.

1437 All crew mustered on the starboardA-deck with tools, prepared the rescue boat, tested emergency lights andcommunication system normal, Made ship to Williamson turning,  Commenced to search the man overboard, checkedrescue equipments and personal effects.

1439 The rescue boat ready, tested therelease equipment normal, men on board.

1445 Found the overboard man, Made lee sidefor him, Lowered the rescue boat on water.

1450 Succeed in picking the manup on rescue boat.

1453 Recovered the rescue boat in positionand fixed it. The man has been treated by doctor, reported to the company andother party.

1456Reviewed.

1500Dismissed the alarm, Finish the drill.



应急舵演练

Emergency steering gear training


1630 释放应急警报,并全船广播舵机故障。


1632 全体人员集合于指定地点,甲板人员改操应急舵,机舱人员抢修操舵控制系统装置。大副、木匠了头,试验通讯设备正常。向周围船舶及港口通报情况,与公司保持联系,做好应急准备。


1634 双锚备妥,操应急舵正常,向公司报告故障现象,得到岸基支持。


1645 操舵控制系统装置修复,恢复正常航行。


1649 讲解应急舵操作转换规程及注意事项,现场讲评。


1652解除警报,演习结束。


1630 Sounded the emergency alarm andbroadcasted that the steering gear was abnormal, Captain on bridge.

1632 All crew mustered in position accordingto the muster list. C/O and carpenter lookout forward, tested communicationsystem normal, changed and operated emergency steering gear system on spot, broadcastedthe question on VHF, kept contacting the company, repaired the steering gear.

1634 Both anchor ready, emergency steering gear system normal, got the help from thecompany.

1645 The steering gear has beenrepaired, resumed sailing.

1649 Familiarwith the changed procedures of the emergency steering gear one by one, reviewed.

1652 Dismissed the alarm, Finish the drill.



 碰撞/船体破损演练

Collision/Ship’s hull damage


1555 释放紧急警报,并全船广播与他船发生碰撞,并悬挂信号。


1557 全体人员按职责行动,试验通讯设备正常,机舱备车,与公司联系,抄收气象信息。测量各油水舱柜及污水井,做好堵漏准备。


1600 检查发现首间舱水线附近破损进水,减速航行,进行堵漏,排水。计算破舱稳性符合安全要求。


1610 堵漏成功,水位下降,其余各部位正常,向公司汇报。


1615现场讲评,恢复慢速航行。


1620 解除警报,演习结束。


1555 Sounded the emergency alarm andbroadcasted that our ship was collision with other ship, Captain on bridge.

1557 All crew took action according to the contingencyplan, noticed the emergency message on VHF, tested the communication systemnormal, S/B main engine,connectedwith the company, received weather messages, sounded all of the tanks and wells,got ready to wall up any dilapidation.

1600 Checked and found FPT damage, the holewas near the water line, reduce speed, discharged the water, commenced to carryout walling up.

1610 Walling up successful, the water wasreduced in the FPT, checked other parts of the ship normal, reported the company.

1615 Resumedsailing, reviewed.

1620 Dismissed the alarm, Finish the drill.



船体破裂演练

Ship’ hull crack drill


1555 释放紧急警报,全船广播我轮船壳破裂,并悬挂信号。


1557 全体人员按职责行动,试验通讯设备正常,机舱备车,与公司联系,抄收气象信息。测量各油水舱柜及污水井,做好堵漏准备。


1600 检查发现首间舱水线附近破损进水,减速航行,进行堵漏,排水。计算破舱稳性符合安全要求。


1610 堵漏成功,水位下降,其余各部位正常,向公司汇报。


1615现场讲评,恢复慢速航行。


1620 解除警报,演习结束。


1555 Sounded the emergency alarm andbroadcasted that our ship’s hull was cracked, Captain on bridge.

1557 All crew took action according to the contingencyplan, noticed the emergency message on VHF, tested the communication systemnormal, S/B main engine,connectedwith the company, received weather messages, sounded all of the tanks andwells, got ready to wall up any dilapidation.

1600 Checked and found FPT damage, the holewas near the water line, reduce speed, discharged the water, commenced to carryout walling up.

1610 Walling up successful, the water wasreduced in the FPT, checked other parts of the ship normal, reported the company.

1615 Resumedsailing, reviewed.

1620 Dismissed the alarm, Finish the drill.



恶劣气候应急演练

BAD WEATHER EMERGENCY PRACTICE


1550释放紧急警报,全船广播恶劣气候来临,船长上驾驶台。


1552 全体人员集合于餐厅,调整航向,航速,及时定位,发布警告,抄收气象信息,测风向、风速及气压气温,与公司保持联系。


1555 检查固定物料间易动物品及备件,检查各水密部位,查看甲板物品及货物是否移动,备车航行,巡视主机等设备,拉扶手绳,做好安全保障。


1610 各项工作顺利完成,未发现异常情况,加强巡视。


1615 恶劣气候过去,恢复正常航行。


1620 现场讲评,演习结束。


1550 Sounded the emergency alarm andbroadcasted that bad weather was coming, Captain on bridge.

1552 All crew took action according to the contingencyplan, noticed the warning message on VHF, fixed the ship’s position in time, testedthe communication system normal, S/B main engine,adjusted the ship’s speed and course, kept with the company,received weather messages, measured wind’s course、speed and air pressure.

1555 Checked and fastened all goods andspare parts, checked all watertight parts in good condition, checked the cargono shifting, protected the main engine etc. in good condition, fixed the hangrope on main deck, took safety measures.

1610 All work completed, all in goodcondition, strengthened around.

1615 Badweather gone, resumed sailing, reviewed.

1620Dismissed the alarm, Finish the drill.



海盗和/或恐怖活动

Anti-piracy/terrorism activities drill


1430 释放保安警报,启动保安报警系统并全船广播有可疑小船驶近。


1432 全体人员携带自卫武器集合于左主甲板,点名介绍情况,启动消防泵,开探照灯,与公司及附近的保安当局、军舰联系,保持通信畅通,按职行动,备车,绞起舷梯。


1434 皮龙出水,驱赶海盗,制造声响,防止海盗从锚链攀上。


1440 阻止海盗成功,小船离去。


1445 小船远离,无再次袭扰企图,向公司及相关各方汇报,现场讲评。


1450 解除警报,演习结束。


1510 Sounded thealarm of piracy and broadcast there was a little boat proceeding to my vessel, startedthe SSAS, Captain on bridge.

1512 Crew mustered onmain deck with tools. SSO counted and informed the event, Started the fire pumpand project lights. Contacted the company and appropriate Authority, actedaccording with the contingency plan.

1514 The watersprayed out, prevented the piracy on board, made noises by whistles, took theproper measure to leave away the boat.

1522 Theprevention was success. The boat left.

1524 Reportedto the company and appropriate authority, resumed sailing,Reviewed

1527 Dismissedthe alarm, finished the drill.

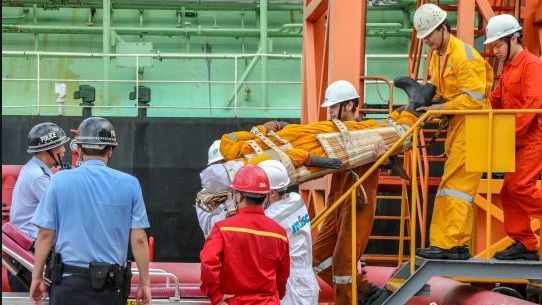

重伤/重病/死亡

Crew’s wound, sickness and die

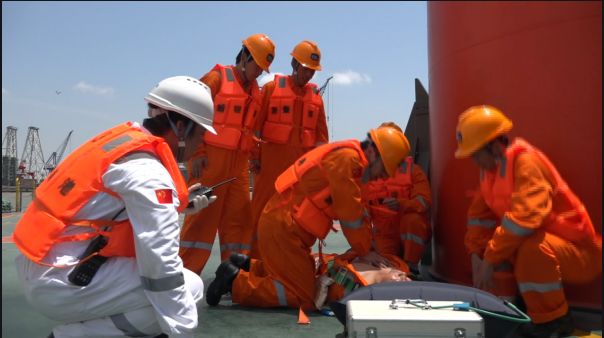

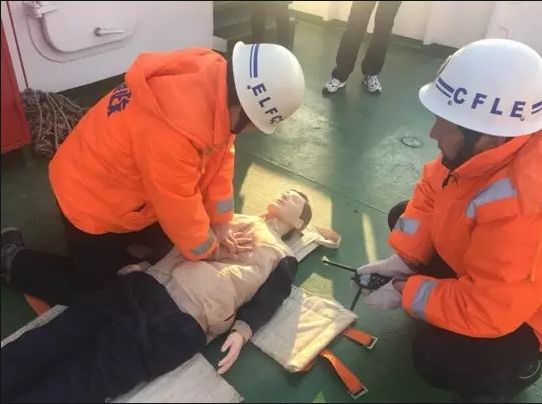

1510 释放应急警报,并全船广播有人员受伤。


1512 全体人员集合于左主甲板,经查发现一人因滑跌受伤,伤情严重,立即组织抢救,制定治疗方案,向公司汇报。


1520 公司指示治疗方法,船上联系附近港口,请求岸上治疗。


1530 附近港口派直升机到船,伤员送上直升机,送往附近港口治疗,向公司汇报。


1533 现场讲评。


1535解除警报,演习结束。


1510 Sounded the emergency alarm andbroadcast a crew has wounded seriously, Captain on bridge.

1512 Crew mustered on port side main deck, acrew has wounded for slip, made the medical scheme, saved by doctorimmediately, reported to the ship owner.

1520 Save the wounded person according tothe company’s instruction, connected with a nearest port, asked for medicalassistance.

1530 The helicopter arrived andcarried away the wounded person to the nearest port.

1533Reported the company, resumed sailing, reviewed.

1535Dismissed the alarm, Finish the drill.



偷渡或毒品演练

ANTI-STOWAWAY/DRUGDRILL


1550 释放应急警报,并全船广播可能有毒品被藏于船上。


1552 全体人员集合于左主甲板,点名查职正常,按职行动。


1600 报告发现一可疑物品在前尖舱内,保护现场,向公司汇报,全船彻查。


1610 未再发现其他物品,向COS和PFSO报告,按指示行动。


1613 现场讲评。


1615解除警报,演习结束。


1600 Sounded the emergency alarm and broadcasted that there might be drugon our ship(there may be a stowaway on board), Captain on bridge.

1602 All crew mustered on port side main deck, everyonetook action according to the contingency plan.

1610 Someone reported that doubtful thing was found in NO.4 crane, protectedthe spot, reported to the company and went through all parts of the ship.

1615 Nothing was found again, reported to COSand PFSO, the distrustful thing was disposed according to the order of COS andPFSO.

1620 Resumed sailing, reviewed.

1622Dismissed the alarm, Finish the drill.



 无法正常发送船位报演练

Theship’s position can’t be transmitted


1510释放应急警报,并全船广播我轮无法正常发送船位报,船长上驾驶台。


1512 根据应变部署,所有船员按职责行动,与其他船舶或岸站联系,转发我轮船位。驾驶台加强瞭望,保持报房值守,检修通信系统。


1517 通过附近船舶转发我轮情况给公司,请求岸基支持。


1526 通信系统修复,成功联系公司,报告。


1532 恢复航行,讲评。


1535 解除警报,结束演习。


1510 Sounded the emergency alarm and broadcast that the ship’s position couldn’t betransmitted to the owner, Capt. on the bridge.

1512 All crew tookaction according to the contingency plan, connected with nearest ship or SES for help, kept lookout on the bridge, kept watch atthe radio room, checked and repaired communication system.

1517 Send the question and require to thecompany through by other ship.

1526 The communication system has beenrepaired, connected with the company successful, reported.

1532 Resumedsailing, reviewed.

1535 Dismissed the alarm, Finish thedrill.



直升机接送引水员演练

HELICOPTER/SHIP OPERTION DRILL


1700 船长广播直升机即将到船(可悬挂D旗)。


1702 (大副携带对讲器现场指挥站于上风舷,二副驾驶台协助船长工作,负责对外联络;三副现场指挥接替人员,负责消防器材;)所有人员按照各自职责行动,准备救助艇,相关的消防器材到位,接妥一根皮龙,另一根皮龙连于泡沫枪上,启动消防泵,穿防火服,机舱做好应急准备。


1704 皮龙出水,消防员着装完毕,控制船速,与直升机协调。


1710 直升机降落,引水员下机,驾驶员接引水。


1713 引水员抵达生活区,直升机离船。


1715 现场讲评,演习结束。


1500 Sounded the emergency alarm and broadcasthelicopter/ship operation drill, Capt. on the bridge.

1502 All crew with tools and portableextinguishers took action according to the contingency plan. Prepare thelifeboat and the hoses. Start the emergency pump. Two firemen started to put onoutfits.

1504 Firemen and the lifeboat on standby. Controlthe ship’s speed. And contact with the helicopter.

1507 The helicopter landing,the pilot camedown.

1508 The helicopter left.

1510Reviewed.

1512 Dismissed the alarm, completed the drill..



船舶搁浅、触礁演练

Ship aground/rock drill


1540 值班人员报告,我轮搁浅,船长上驾驶台。

1541释放应急警报,并全船广播。

1543所有船员按职责行动,测定船位,升起信号,通过VHF发送紧急广播,接收气象资料,测定风向、风力,测量各油舱、水舱、污水井及船舶周围水深,保持通信畅通,备车,向公司报告申请岸基支持。

1548检查发现左侧NO.1舱位置搁浅,未发生破损,向公司报告,等待涨潮。1555开始涨潮,操船脱浅成功。

1558 向公司报告,恢复航行。

1600 解除警报,演习结束。

1540 Duty officer reported that the ship wasaground.

1541 Captain on bridge, sounded the emergency alarm and broadcast.

1542 All crew took action according to the contingencyplan, hoisted the signal, noticed the warning message on VHF, fixed the ship’sposition in time, tested the communication system normal, S/B main engine,kept with the company and asked for theshore assistance, received weather messages, measured wind’s course、speed, sounded all of the tanks、wells、depth around the ship, got ready to wall up any dilapidation.

1548 Checked and found NO.1 port side was agroundand no dilapidation, waiting for the spring tide, reported the company.

1555 Spring tide reached, manoeuvred theship out of aground successful.

1557 Reported the ship owner, resumedsailing, reviewed.

1600 Dismissed the alarm, Finish the drill.




船舶失控演练

OUT OFCONTROL DRILL


1510释放应急警报,并全船广播因电力丧失,船舶失控,船长上驾驶,升信号旗。1512所有船员按职责行动,测定船位,通过VHF发送紧急广播,启动应急发电机,保持通信畅通,检查修理电力系统。


1517找到原因,进行修理。


1522电力系统修复,恢复电力,停掉应急发电机,向公司报告。


1525恢复航行,现场讲评。


1528 解除警报,演习结束。


1510 Sounded the emergency alarm and broadcast that the ship was out of control forthe power lost, Capt. on the bridge, startedthe emergency generator,hoistedthe signal.

1512 All crew tookaction according to the contingency plan, the emergency generator started, kept tested the communication system normal, noticed the warningmessage on VHF, fixed the ship’s position in time, checked and repaired thepower supply.

1517 Found the question and repaired it.

1522 The power supply has been repaired,stopped the emergency generator,reported the company.

1525 Resumedsailing, reviewed.

1527 Dismissed the alarm, Finish thedrill.



战区应急演练

Navigating in thewar


1510释放应急警报,并全船广播船舶进入战区,船长上驾驶。


1512所有船员按职责行动,备车,安排双驾,进行灯火管制,加强报房值守,保持通信畅通,接收战区警报和气象、航警信息,通知船东及租家。做好各项应急抢险准备,检查准备各种堵漏器材,保持淡水、食品及医疗用品储备;标绘布雷区、禁航区,了解对商船的各项要求。


1517发现军舰袭击我轮,操船规避,发布信息,联系军舰我轮只是商船。


1522军舰离去,向公司报告。


1528通过战区,恢复航行,现场讲评。


1530 解除警报,演习结束。


1510 Sounded the emergency alarm and broadcasted the ship was into war zone, Capt. onbridge.

1512 All crew tookaction according to the contingency plan, blackout, kept lookouton the bridge, kept watch at the radio room, kept the communication system normal, S/B M/E, received the warning andweather message, noticed the owner and charter.

1516 Our ship was assaulted by a warship, broadcastedthe massage, contacted with the warship we only was a merchantman.

1522 The warship left, reported the company.

1528 Leftthe war zone r, resumed sailing, reviewed.

1530 Dismissed the alarm, finishedthe drill.

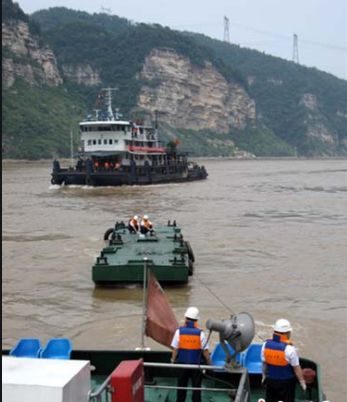

应急拖带演练

Emergency towing


1035释放应急警报,并全船广播我轮将执行应急拖带,船长上驾驶台。


1037 所有船员按职责行动,准备好拖带设备及拖缆,向公司报告。


1040靠近被拖船舶,通过抛绳器带上拖缆并挽紧。


1045 签好救助合同。


1050 开始拖带,安排人员看守拖缆。


1100抵达安全水域,抛锚,完成拖带,解除拖缆,报告公司。


1105解除警报,演习结束。


1035 Sounded the emergency alarm and broadcasted our ship would be towing, Capt. onbridge.

1037 All crew took action according to the contingencyplan, S/B the tow lines and the equipments, noticed the owner and charter.

1040 Neared the towed ship, senttowing line by throwing apparatus and made fast.

1045 Subscribed salvationcontract.

1050 Commenced towing, lookedsharp out for towing line.

1100 Arrivedsafety area, dropped anchor, finished towing, reported the company, reviewed.

1105 Dismissedthe alarm, finished the drill.



损坏货物、船舶基础设施或系统或船舶备品

Tampering with cargo, essentialship equipment or system or ship’s stores


1450 释放保安警报,并全船广播,启动保安报警系统。


1452 全体人员集合于右主甲板,点名,保安员介绍情况,各自按职行动,保持通讯畅通。


1500 报告发现锚机被损坏,向CSO和PFSO或当局报告,组织人员抢修,限制人员上下。


1506 锚机修复,恢复正常操作,递交报告。


1512现场讲评,保安报警复位。


1515解除警报,演习结束。


1435 Sentsecurity alarm . Sound thealarm of fire-fighting and broadcast. Captain on bridge,

1437 All crew mustered onmain deck .SSO circulate security incident found someone want to tempering withcargo, essential ship equipment or system or ship’s stores, report to master.

1440 Masterorder to search thoroughly everywhere.

1445 SSO instruct deck andengine team to search according to contingency plan, keep close liaison withSSO.

1450 found 3 suspects inengine room, and control. Report to CAPT and PFSO. Repaired ship’s equipment.

1455 Coastguardon board to deal with the incident.

1500 All clearSSO evaluate and review the drill. Alram for end of drill.




使用船舶载运企图制造恐怖事件的人员或设备

Use of the ship to carry thoseintending to cause a security incident and/or their equipment


1530释放保安警报,并全船广播,启动保安报警系统。


1532全体人员集合于右主甲板,点名,保安员介绍情况,保持通讯畅通。


1534 分组搜查各责任区,清查货物,物料及备件等。


1540 发现可疑备品,向公司及相关各方报告,彻查全船。


1547 未再发现其它物品,提交报告,保安报警复位。


1552 现场讲评。


1600 解除警报,演习结束。


1510 Securityalarm activated. Sound thealarm of fire-fighting and broadcast. Captain on bridge,

1512 All crewmustered on main deck .SSO circulate security incident found someone on boardwho will intending to cause a security incident, report to master.

1520 Master gaveorder to search thoroughly everywhere.

1522 SSOinstruct deck and engine team to search according to contingency plan, keepclose liaison with SSO.

1530 found 3suspects in paint room, and control. Report to CAPT& report to PFSO.

1532 Coastguardon board to deal with the incident.

1535 All clearSSO evaluate and review the drill



使用船舶本身作为损坏或破坏的武器

Use of the shipitself as a weapon or as a means to cause damage or destruction


1615释放保安警报,并全船广播,启动保安报警系统。


1617全体人员集合于右主甲板,点名,保安员介绍情况,保持通讯畅通。说服恐怖分子放弃恐怖活动。


1620 与相关各方联系,采取措施使恐怖分子无法操纵船舶,拖延时间,寻求援助。

1627 控制恐怖分子,恢复正常航行。


1632向公司及相关各方报告,保安报警复位。


1635 现场讲评。


1638 解除警报,演习结束。


1500 Securityalarm activated. Sound thealarm of fire-fighting and broadcast. Captain on bridge,

1502 All crewmustered on main deck .SSO circulate security incident found someone on boardwho will use of the ship itself as a weapon or as a means to cause damage or destruction。Report to master.

1510 Master gaveorder to search thoroughly everywhere.

1512 SSOinstruct deck and engine team to search according to contingency plan, Keep closeliaison with SSO.

1530 found 3suspects in paint room, and control. Report to CAPT& report to PFSO.

1535 Coastguardon board to deal with the incident.

1540 All clearSSO evaluate and review the drill



武器或设备,包括大规模杀伤性武器的走私

Smuggling weapons or equipment, including weapons andmass destruction


1630 释放保安警报,并全船广播,启动保安报警系统。


1632 全体人员集合于左主甲板,点名介绍情况。


1634 分组搜查各责任区,清查货物、物料、备件等。


1640 未发现可疑物品,向公司汇报。


1643 现场讲评,保安报警复位。


1645 解除警报,演习结束。


1510 Sentsecurity alarm .

1512 All crewmustered on A-deck .SSO count and inform the event to crew, report to master.

1520 Master gaveorder to search thoroughly everywhere.

1522 4 gangsstart searching.

1530 Smuggling weapons found in NO.3 cargo hold.

1532 Report tomater and protect spot. Report to CSO and PFSO.

1535 coastguardon board to deal with the incident.

1600 all clear.SSO evaluate and review the drill.




对船舶的破坏,例如爆炸

Damage to, ordestruction of the ship, e.g. by explosive device, arson, piracy, sabotage orvandalism


1510  释放保安警报,并全船广播,启动保安报警系统。


1512  全体人员集合于左主甲板,点名介绍情况,有海盗船向我轮船首打火箭炮,启动消防泵,各自按职行动。


1514  皮龙出水,躲避海盗袭击,扑灭船首火势,防止海盗登轮,寻求援助。


1520 海盗攻击失败,附近军舰赶到,海盗离去。检查全船未发现有其他损坏,向公司及相关各方报告。


1526 现场讲评,保安报警复位。


1530 解除警报,演习结束。


1505 Sendsecurity alarm .

1510 All crewmustered on A-deck .SSO count and inform the event to crew, report to master.

1512 Master gaveorder to search thoroughly everywhere.

1515 4 gangsstart searching.

1520 One parcelsuspicious material found in paint room.

1522 Report tomater and protect spot. Report to CSO and PFSO.

1525 coastguardon board to deal with the incident.

1530 all clear。SSO evaluate and reviewthe drill. alarm for end of drill.



海上攻击

Attacks whilst at sea


1545释放保安警报,并全船广播有海盗船向我轮驶近,启动保安报警系统。


1547 全体人员携自卫武器,按职行动,站好各自的掩体,通报小船的位置及动向,用VHF联系及报告,启动消防泵,联系附近的军舰,寻求援助,向公司报告,开高压电网。


1550 海盗船继续靠近,关闭高压电网,开启皮龙,驱赶海盗船。扔燃烧瓶,抛木板及大桶阻挡海盗。采取规避操纵,使海盗船无法靠近。


1558 有两条小船开枪射击,并靠近大船,企图登轮。关掉消防泵,开启高压电网,抛燃烧瓶,并用自卫武器攻击试图登轮的海盗,喷射CO2灭火器。


1605 阻止海盗成功,小船全部离去。


1608 小船远离,无再袭扰意图,向公司及军舰汇报,恢复正常航行。现场讲评,保安报警复位。


1610 解除警报,演习结束。


16252/O found suspicious speeding boat closing .he sound alarm. Noticed to themaster.

1627all crew mustered on aft deck with necessary sticks, connected two fire hoses.

1630High pressure of spray water were spout against the suspicious boat.

1655alarm continuously sound, all deck lights opened illuminated vicinity of theclear. Crews shouted loudly deterred attempt boat. Suspicious boat leave.

1700the SSO evaluated the drill and dismissed.




未经允许使用或进入,包括藏于船上的偷渡人员

Unauthorized access or use, including presence of stowaways


1530释放保安警报,启动保安报警系统并全船广播。


1532 全体人员集合于左主甲板,点名介绍情况。


1534 分组搜查各责任区。


1542 发现有可疑人员藏于NO3克令吊,控制该人员,对现场拍照。全船彻查,询问潜入者。


1550 未再发现其他异常情况,向公司及相关各方汇报并递交报告。


1553 保安报警复位,讲评。


1555 解除警报,演习结束。


1400 Sendsecurity alarm.

1402 All crew mustered on maindeck. SSO circulated security incident found stowaways on board, reported toCapt.

1410 Capt.orderto search everywhere thoroughly.

1412 SSO instruct deck andengine team to search according to contingency plan, keep close liaison withSSO.

1420 found 3stowaways in paint room, and controled them. Reported to CAPT and PFSO.

1425 Coastguardon board to deal with the incident.

1430 All clear.SSO evaluates and review the drill.  Endof drill.



劫持扣留船舶或船上人员

Hijacking orseizure of the ship or of persons on board


1610 释放保安警报,启动保安报警系统并全船广播。


1612 全体人员集合于左主甲板,点名介绍情况,与公司及附近的保安当局、军舰联系,保持通信畅通,按职行动。


1616 与劫持者周旋,弄清人数、国籍、意图等,切断照明,停船,寻求援助。


1625 军舰赶到,将5名恐怖分子驱赶离船,恢复正常工作。


1628 向公司及相关各方汇报,现场讲评。


1630 解除警报,演习结束


1510 Securityalarm activated.

1512 All crewmustered on main deck .SSO circulate security incident found suspects on boardand hijacking a sailor, report to master.

1520 Masterreport to PFSO & company

1522 SSO orderedcontrol scene, keep close liaison with CAPT.

1530 SSOnegotiate with suspects.

1532 hostage wasreleased.

1535 coastguardon board deal with relate incident

1600 All clearSSO evaluate and review the drill



锚泊或从海上发起攻击

Attacks from seaward whilstat berth or at anchorage


1645 释放保安警报,启动保安报警系统并全船广播。


1647 全体人员携带自卫武器集合于左主甲板,点名介绍情况,启动消防泵,开探照灯,与公司及附近的保安当局、军舰联系,保持通信畅通,按职行动,备车,绞起舷梯。


1650 皮龙出水,驱赶海盗,制造声响,防止海盗从锚链攀上。


1656 阻止海盗成功,小船离去。


1702 小船远离,无再次袭扰企图,向公司及相关各方汇报,现场讲评。


1705 解除警报,演习结束


1545 2/O foundsuspicious speeding boat closing .he sound alarm. Noticed to the master.

1547 all crewmustered on aft deck with necessary sticks, connected two fire hoses.

1550 Highpressure of spray water were spout against the suspicious boat.

1600 alarm continuouslysound, all deck lights opened illuminated vicinity of the clear. Crews shoutedloudly deterred attempt boat. Suspicious boat leave.

1620 the SSOevaluated the drill and dismissed.



讲评:

1.     Muster rapidly/All crew muster station quickly/ Actionquickly.

2.     Lifejackets exactly.

3.     Take the measure well.

4.     Release the rescue boat and recover normal.

5.     Started theENG.Normal.

6.     Responsibility definitely.

7.     Everyone was familiar with their duty.

8.     Fireman got ready in time.

9.     The operation exactly.

10.  Be up to thedrill’s require.

11.  Shut the vale intime.

12.  Some-body shouldbe care of their position.

13.  The equipments ingood condition.

14.  Improve ourcleaning the spillage oil skills.

15.  Everyone knowstake task of himself.




巴拿马溢油演习抵前48小时

PANAMA OILSPILLAGE DRILL


1600 值班人员发现加油管漏油,关掉相关的油阀和泵,并立即报告,同时联系AUTHORIZED PERSON,得到指示继续演习。


1602 释放溢油警报,并全船广播,船长上驾驶台。


1604 全体人员携清油器材集合于左甲板,堵塞甲板泄水孔。


1606 经查发现加油管破损破裂漏油,油量不多,未流入海,立即回收溢油,更换加油管。


1612 溢油回收完毕,用洗衣粉清洁甲板。


1617 现场讲评,恢复正常加油作业。


1620解除警报,演习结束,向指定人员汇报。


1600 Duty person found the bunkering pipewas leaking, shut off relevant valves and the pump on main deck, reported toAuthorized person. THEAUTHORIZED PERSON ORDERED TO CONTINUE THE SPILLAGE EMERGENCY DRILL.

1602 Sounded the alarm of oil spillage andbroadcasted.

1604 Crew mustered on main deck with tools,walled up the discharge hole on main deck..

1606 The pipe was broken, changed. No oilout the shipboard, removed leakage oil.

1612 Cleaned up main deck.

1617 The pipe had been changed, resumedbunkering. Reviewed

1620Dismissed the alarm, finished the drill. Report to Authorized person.



演习结束后发报报文

Authorized Person Notification Exercise

1.  Date Performed:          _______


2.  Vessel Name (initiating drill):  ________


       IMO number:  ________


       Panama Canal SIN:  _______


       Owner /Operador / Manager:  ___


3. Name of Person Notified:

JULIO GOODRIDGE

(Identified as Authorized Person in PCSOPEP)


4.  Time initiated:   ____


Time in which Authorized Person or designee responded: ______


5.   Method used to contact:


       Telephone No. (507) 306-9720/ 306-9721

       Mobile No.       (507) 6618 5178

       Fax No.            (507)223 9821/ 9822

       Email:               onduty@coscopan.com


6.    Description of notification procedure: Master called Panama Canal “Authorized Person” and informed the on-call AuthorizedPerson representative that the vessel was holding a notification Drill inaccordance with the PCSOPEP.


Other Comments:_______________________________________

________________________________________________


  1. Authorize Person Notification completed in accordance with the Plan.
